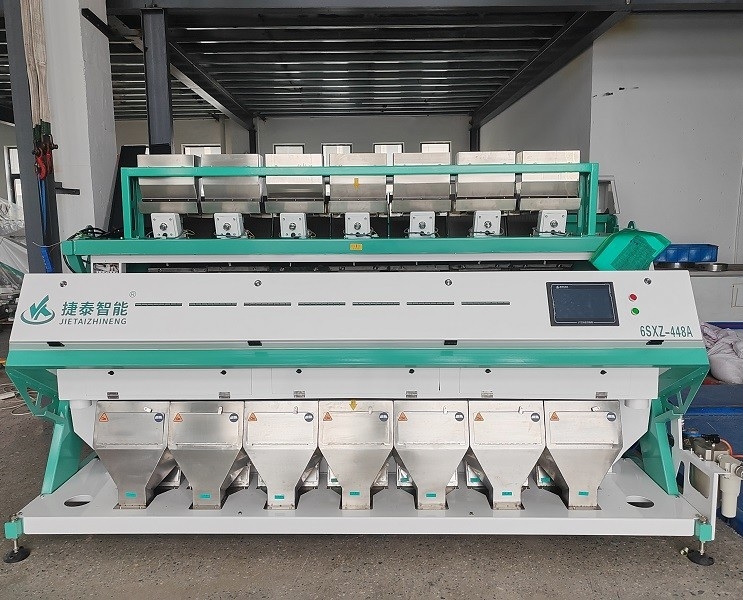

Intelligent CCD Camera 7 Chutes Grain Sorting Machine Multi Function

Multi Function Intelligent CCD Camera 7 Chutes Grain Sorting Machine

Working Principle of Color Sorters

Color Sorters are machines used on the production lines in bulk food processing and other industries. They sort materials by their colors or shapes, If it is found that there are unqualified materials or impurities in the materials, the ejector will blow out the rejects in the hopper.In color sorting stage, the grain pile comes into the hopper, from there it goes into the vibrating feeder. The vibratory feeders spread and leveled the grain to a single-layer flow.Two CCD cameras are installed at the two sides of the control area. The single-stream from e.g. Cereal is scanned by the cameras. The data of the video cameras are used in the arithmetic unit and are analyzed in real time. From the results of image analysis of the signals, an air flow pulse is generated by opening the valves at the moment on the fly by the detected particle. The compressed air pulses with a pressure of (0.4 … 0.6 MPa), which is generated only for the duration of a few milliseconds, blowing the grain into the corresponding receiver module.

Technical Parameters

Application Fields

＊ Rice:white rice;black rice;parbil rice; thai rice ;brown rice etc.

＊ Grains:peanut, corn,sesame,oat,millet,little lentil.

＊ Beans:red beens,kidney beans,coffee bean,black beans,mung beans.

＊ Nuts:walnut kernel,apricot kernel,sunflower seeds,almond,watermelon seed,macadamia nut.

＊ Seeds:watermelon seeds;sunflower seeds.

＊ Industries:plastic,electronic component,industrial salt,quartz sand

＊ Others:tea,raisins,wolf berry,pepper.

Packaging Details and Shipping
Our products use professionalwooden cases with PE plastic bag.Package size will depend on each model size.
