Product Details:
|
| Application: | Rice/Grain Sorting | Capacity(T/H): | 1.6-3.0 |
|---|---|---|---|
| Power: | 220V/50HZ | Color: | Green-White |
| Condition: | New | Sorting Accuracy(%): | ≥99.99 |
| Dimension(l*w*h): | 1320*1520*1885mm | Function: | Color Sorter,sorting Different Color Materials |
| High Light: | 3.0T/H Rice Colour Sorting Machine,Home Intelligent Rice Color Sorter Machine,Little Yellow Rice Color Sorter |
||

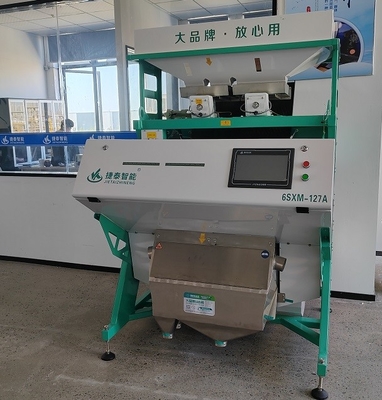

Home Use Intelligent Little Yellow Rice Color Sorter Machine
Color Sorter Working Steps
1. Raw Material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .
3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
Technical Parameters
|
Model |
6SXM-127A |
|
Accuracy |
99.99 |
|
Optical Carryover |
30:1 |
|
Capacity |
1.6-3.0 |
|
Power |
2.0 |
|
Air Pressure |
0.6-0.8 |
|
Air Consumption |
≤1.0 |
|
Dimension(mm) |
1320*1520*1885 |
|
Weight |
430 |
Why Choose Jietai Color Sorter
Factory direct,quality assurance!!!
a.Running Stable
Quality assurance,long service life.Non-invasive sorting for all-round protection of easy to damage and break materials.
b.Minimalist User Interface
Let you far away from debugging difficult and operation complex trouble.
c.Super Brain Identification
Intelligent sorting,accurate identification of extremely small color difference and extremely small heterochromatic area materials.
d.Intelligent Ejector
Intelligent control of blowing frequency,It can be achieved optimized carryover and ultra-low air consumption.
Intelligent detection of valve running status which makes the failure and operation life of the valve under control.
e.Powerful Function
Shape sorting and color sorting,intelligent color sorting plans for flexible matching.
f.After-sale Without Worry
provide free training,consulting and technical support for users;
Provide free warranty service for one year(except the wearing spare parts)
Application Fields
Our machine can sort many kinds of rice and grains and other materals
• Rice:white rice;black rice;parbil rice; thai rice ;brown rice etc.
• Grains:peanut, corn,sesame,oat,millet,little lentil.
• Beans:red beens,kidney beans,coffee bean,black beans,mung beans.
• Nuts:walnut kernel,apricot kernel,sunflower seeds,almond,watermelon seed,macadamia nut.
• Seeds:watermelon seeds;sunflower seeds.
• Industries:plastic,electronic component,industrial salt,quartz sand
• Others:tea,raisins,wolfberry,pepper.
Cooperation Case
Our machine can be found everywhere in Thailand,China,India,Algeria,Bangladesh,Myanmar
and others more countries.
