Product Details:
|
| Application: | Sorting Rice | Capacity(T/H): | 0.8-1.6 |
|---|---|---|---|
| Power: | 220V/50HZ | Color: | Blue-White |
| Condition: | New | Sorting Accuracy(%): | ≥99.99 |
| Dimension(l*w*h): | 785*1397*1497mm | Function: | Color Sorter,sorting Different Color Materials |
| High Light: | RGB Food Processing Machinery,Mini Rice Sorting Machine,Rice Color Sorter Machine 220V |
||

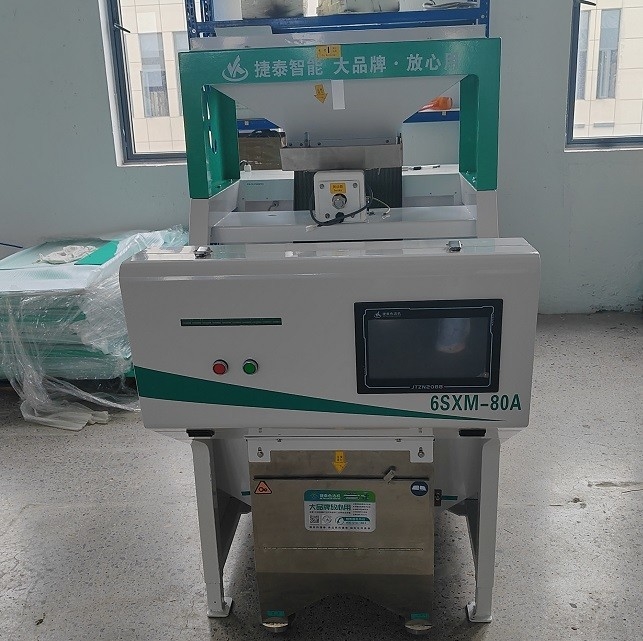

Mini Small RGB Food Processing Machinery Rice Sorting Machine
Color Sorter Working Principle
Color Sorter working principle is to use the photoelectric detection technology and image acquisition system to obtain the (RGB) red, green and blue optical information of the material, convert the optical characteristics of the material into a photoelectric signal, and then send the signal to the control system to drive the ejector uses compressed air to blow out foreign particles in the material.
Technical Parameters
| Model NO. |
6SXM-80A |
| Accuracy (Percent) |
99.99 |
| Optical Carryover (Bad:Good) |
30:1 |
| Capacity (T/H) |
0.8-1.6 |
| Power (kwh) |
1.5 |
| Air Pressure (Mpa) |
0.6-0.8 |
| Air Consumption (L/M) |
≤0.6 |
| Dimension (L*W*H) |
785*1397*1497mm |
| Weight (kg) |
260 |
Application Fields
Jietai rice color sorter, as an intelligent machine, can detect and remove mildewy rice, white rice,broken rice, glass and stone in the raw material and classify rice based on the color,shape and other differences,Jietai rice color sorter always provides customers with intelligent,professional and comprehensive sorting solutions,such as sorting extremely light yellowrice, backline rice, needle tip, diseased rice and small broken rice.
Advantage of Jietai Color Sorter
1. No need to debug, you can use after power-on,without any special experience.
2. Easy to operate,one-click to choose the sorting modes, such as normal rice,japonica rice,glutinous rice,black rice and red rice.
3. The quality is controllable, you can adjust the sorting accuracy freely to meet the needs of differentiated processing and the sorting performance is up to 99.99%.
4. It can do second sorting,low consumption and carryover ratio is more than 30:1,the income is guaranteed.
5. The output is flexible, and it can process 3.0-6.0 tons per hour, which can meet the needs of various processing easily.
6. Intelligent ejectors and ultra-low air consumption to achieve low carryover ratio.
7. Intelligent self-inspection,dust removal and anti-breakage, automatic dust cleaning and automatic adjustment of signals and lights to maintain the best color sorting state.
8. Worry-free after-sale service, and quality guaranteed.
Cooperation Cases
Packaging&Shipping
Our products use professionalwooden cases with PE plastic bag..Package size will depend on each model size.
Our Service
Before sales services
We will help you know ahout our color sorter,meets your special requirementaccording to actual condition.
After sales services
1. Provide free training,consulting and technical support for users;
2. Provide personalized programs to the demands of customers;
3. Upgrade software for free for a life time;
4. Provide free warranty service for one year(except the wearing spare parts);
5. Provide 7*24 hours consultation and urgent servicce for users.
Plaese feel free to inquire if you are interested in our procducts!
