Product Details:
|
| Capacity(T/H): | 6.0-12.0 | Power: | 220V/50HZ |
|---|---|---|---|
| Color: | Blue-White | Condition: | New |
| Sorting Accuracy(%): | ≥99.99 | Dimension(l*w*h): | 3486*1560*1800mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Online Support,Field Installation,commissioning And Training | ||
| High Light: | 6T/H Rice Color Sorting Machine,Multifunction Broken Rice Color Sorter,Parboiled Rice Color Sorter Machine |
||

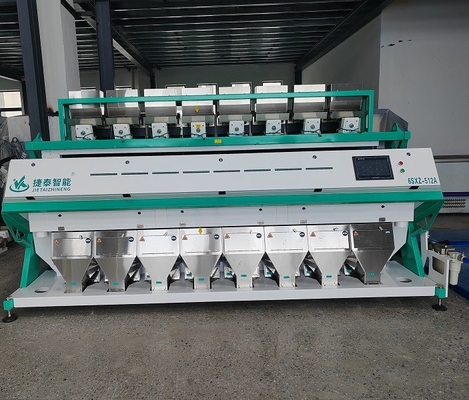

Multifunction Broken Rice Color Sorter Parboiled Rice Color Sorting Machine
Working Principle of Color Sorter
Technical Parameters
| Model NO. |
6SXZ-512A |
| Accuracy (Percent) |
99.99 |
| Optical Carryover (Bad:Good) |
30:1 |
| Capacity (T/H) |
6.0-12.0 |
| Power (kwh) |
5.0 |
| Air Pressure (Mpa) |
0.6-0.8 |
| Air Consumption (L/M) |
≤3.6 |
| Dimension(mm) (L*W*H) |
3486*1560*1800 |
| Weight (kg) |
1750 |
Sorting Performance
Jietai rice color sorter, as an intelligent machine, can detect and remove mildewy rice, white rice,broken rice, glass and stone in the raw material and classify rice based on the color,shape and other differences,Jietai rice color sorter always provides customers with intelligent,professional and comprehensive sorting solutions,such as sorting extremely light yellowrice, backline rice, needle tip, diseased rice and small broken rice.
Components Of The Color Sorter
1. Feeding part: It is composed of feeding hopper, feeding port, vibrator, etc. The feeding device is connected to the frame by an anti-vibration spring. The selected material slides down into the channel through the feeding hopper, the inlet and the vibrator.
2. Channel: It is composed of inclined and fixed aluminum alloy slides, from which the selected materials enter the sorting chamber evenly.
3. Sorting device: It is composed of two sorting boxes at the front and back, with camera, light source, reflector and other components inside. The signals of each channel are collected and processed from here and transmitted to the main control machine.
4. Electrical box: Most electrical components are installed in the sealed box behind the machine, which is an important part of the machine. It is responsible for controlling the work of the electrical part and controlling the spray valve to complete the color selection process of removing impurities.
5. Blowing device: It is controlled by the main control board, the spray valve board, the valve line and the spray valve, used to remove unqualified materials.
6. Receiving hopper: It is composed of receiving chamber and receiving pipe. The receiving pipe receives qualified products and the receiving room receives unqualified products.
7. Frame structure: composed of brackets.
8. Air supply system: It is composed of filtration, decompression, and air pressure display as one part, and provides qualified compressed air to the whole machine. When the air pressure is lower than a certain value, it will automatically alarm and stop working.
9.Heating device: It is composed of a heating film behind the slide, and is controlled by an air switch and a temperature control switch in the electrical box to make the channel work at an appropriate temperature.
Cooperation Case
Our machine can be found everywhere in Thailand,China,India,Algeria,Bangladesh,Myanmar
and others more countries.
Packaging&Shipping
Our products use professional wooden cases with PE plastic bag..Package size will depend on each model size.
Our Service
Before sales services
We will help you know about our color sorter,meets your special requirement according to actual condition.If you want to have your own logo printed on the macine or want to customize your own color for the machine, tell us,we can help you.
After sales services
1. Provide free training,consulting and technical support for users;
2. Provide personalized programs to the demands of customers;
3. Upgrade software for free for a life time;
4. Provide free warranty service for one year(except the wearing spare parts);
5. Provide 7*24 hours consultation and urgent servicce for users.
