Product Details:
|
| Application: | Sorting Corn | Capacity(T/H): | 3-6 |
|---|---|---|---|
| Color: | Blue-White | Condition: | New |
| Sorting Accuracy(%): | ≥99.99 | Dimension(l*w*h): | 2105*1520*1800mm |
| Function: | Color Sorter,sorting Different Color Materials | Voltage: | 220V/50HZ |
| Power(kw): | 3.0 | Type: | Grain Processing Equipment,Automatic,color Sorter Machine,Rice Mill Production Line,Rice Prossessing Equipment |
| High Light: | 99.99 Accuracy Color Sorter Machine,Intelligent Corn Color Sorter Machine,CCD Camera Corn Color Sorter |
||

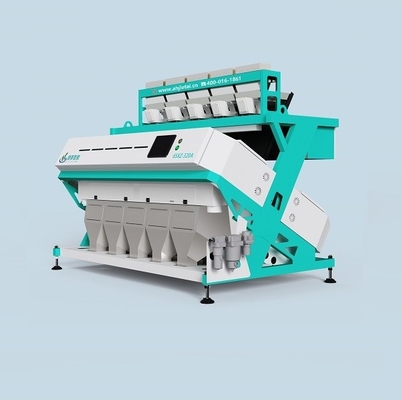

CCD Camera Intelligent Corn Color Sorter With Stable Quality
How the color sorter works
The selected material enters the machine from the hopper at the top. Through the vibration of the vibrator device, the selected material slides down the channel, accelerates its falling into the observation area in the separation room, and passes through the sensor and the background plate. Under the action of the light source, according to the light intensity and color change, the system generates an output signal to drive the solenoid valve to blow out the heterogeneous particles to the waste chamber of the receiving hopper, and the good selected material continues to fall into the finished product chamber of the receiving hopper, so as to achieve the purpose of separation.
Technical Parameters
| MODEL | 6SXZ-256A |
| Chutes/Channels | 4/256 |
| Throughput(T/H) | 3-6 |
| Accuracy(Percent) | ≥99.99% |
| Power(Kwh) | 2.5 |
| Power Voltage | 220V/50Hz |
| Air compressure(Mpa) | 0.6-0.8 |
| Air Consumption(L/M) | <2.5 |
| Weight(Kg) | 840 |
| Dimension(L*W*H) | 2105*1520*1800mm |
Sorting Performance
Corn sorting:Sort yellow corns and red corns,distinguish yellow-red,yellow,white and other impurities.
Product Features
1. No need to debug,you can use after power-on,without any special experience.
2. Easy to operate,one-click to choose the sorting modes, such as normal rice,japonica rice,glutinous rice,black rice and red rice.
3. The quality is controllable, you can adjust the sorting accuracy freely to meet the needs of differentiated processing and the sorting performance is up to 99.99%.
4. It can do second sorting,low consumption and carryover ratio is more than 30:1,the income is guaranteed.
5. The output is flexible, and it can process 3.0-6.0 tons per hour, which can meet the needs of various processing easily.
6. Intelligent ejectors and ultra-low air consumption to achieve low carryover ratio.
7. Intelligent self-inspection,dust removal and anti-breakage, automatic dust cleaning and automatic adjustment of signals and lights to maintain the best color sorting state.
8. Worry-free after-sale service, and quality guaranteed.
Plaese feel free to inquire if you are interested in our procducts!
