Product Details:
|
| Power: | 220V/50HZ | Type: | Rice Sorting Machine |
|---|---|---|---|
| Condition: | New | Production Capacity: | 4-8T/H |
| Color: | Blue | Sorting Accuracy(%): | ≥99.99 |
| Power(w): | 3.5KW | ||
| High Light: | Easy Operation grain sorter machine,Grain Sorter Easy Operation,Grain Sorter High Reliability |
||

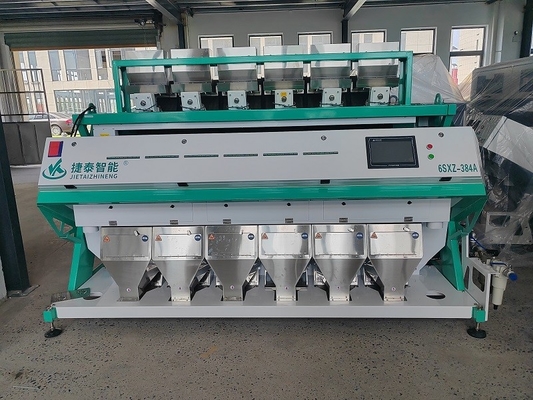

Jietai 6SXZ-384A Rice Mill Factory & Farm Grain Color Sorter: High Reliability & Easy Operation
Company Introduction
Anhui Jietai Intelligent Technology Co., Ltd. is an industry-leading R&D and manufacturer of intelligent color sorters. We specially developed a cost-effective sorting and processing equipment for rice mill factories, farms and cooperatives,this product integrates ultra-clear camera system, targeted positioning system, magnetic ejectors and other core technologies and components.When sorting rice,accuracy adjusting freely,low consumption and high capacity. At the same time with the platform-integrated design and intelligent production,the stability and reliability of products are significantly ahead.Installation and maintenance are convenient,easy to operate, bringing a better experience to our customers.
Technical Parameters
| MODEL | 6SXZ-384A |
| Chutes/Channels | 6/384 |
| Throughput(T/H) | 4-8 |
| Accuracy(Percent) | ≥99.99% |
| Power(Kwh) | 3.5 |
| Power Voltage | 220V/50Hz |
| Air compressure(Mpa) | 0.6-0.8 |
| Air Consumption(L/M) | <2.5 |
| Weight(Kg) | 1350 |
| Dimension(L*W*H) | 2800*1560*1800mm |
Steps
1. Raw Material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .
3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
Application Fields
＊ Rice:white rice;black rice;parbil rice; thai rice ;brown rice etc.
Grains:peanut, corn,sesame,oat,millet,little lentil.
＊ Beans:red beens,kidney beans,coffee bean,black beans,mung beans.
＊ Nuts:walnut kernel,apricot kernel,sunflower seeds,almond,watermelon seed,macadamia nut.
＊ Seeds:watermelon seeds;sunflower seeds.
＊ Industries:plastic,electronic component,industrial salt,quartz sand
＊ Others:tea,raisins,wolf berry,pepper.
Product Features
1. No need to debug, you can use after power-on,without any special experience.
2. Easy to operate,one-click to choose the sorting modes, such as normal rice,japonica rice,glutinous rice,black rice and red rice.
3. The quality is controllable, you can adjust the sorting accuracy freely to meet the needs of differentiated processing and the sorting performance is up to 99.99%.
4. It can do second sorting,low consumption and carryover ratio is more than 30:1,the income is guaranteed.
5. The output is flexible, and it can process 3.0-6.0 tons per hour, which can meet the needs of various processing easily.
6. Intelligent ejectors and ultra-low air consumption to achieve low carryover ratio.
7. Intelligent self-inspection,dust removal and anti-breakage, automatic dust cleaning and automatic adjustment of signals and lights to maintain the best color sorting state.
8. Worry-free after-sale service, and quality guaranteed.
Our Service
Before sales services
We will help you know ahout our color sorter,meets your special requirementaccording to actual condition.
After sales services
1. Provide free training,consulting and technical support for users;
2. Provide personalized programs to the demands of customers;
3. Upgrade software for free for a life time;
4. Provide free warranty service for one year(except the wearing spare parts);
5. Provide 7*24 hours consultation and urgent servicce for users.
