Product Details:
|
| Usage: | Electricity | Cooling Method: | Forced Air-Cooled |
|---|---|---|---|
| Magnetic Source: | Electromagnetic | Magnetic Field Strength: | Moderate |
| Specification: | 8 | HS Code: | 8481100090 |
| High Light: | 8 Blocks Ejector Valve,Grain Sorter Ejector Valve,Air Cooled Color Sorter Ejector Valve |
||

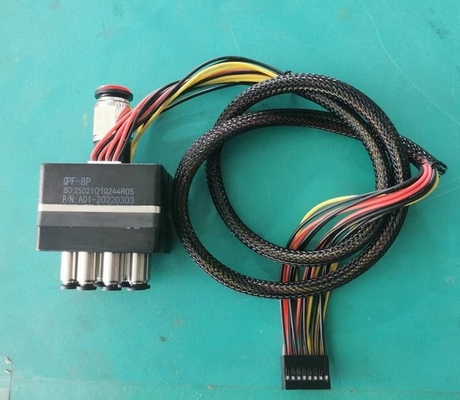

8 Blocks Ejector Valve For Kinds Of Chinese Rice Grain Color Sorter
Technical Specifications
| 产品型号:GPF-8P 规格:8种控制8个出口 Product Model:GPF-8P Specification:8 Controls 8 Exits |
|||||
| 通用特性:Universal characteristic | |||||
| 功能: Features: |
2位2通 常闭型 2 Bit 2 normally closed type | ||||
| 流体气质: Fluid medium: |
干燥空气/惰性气体 Dry air/inert gas | ||||
| 流体气质温度范围: Fluid medium temperature range: |
0-15℃至+50℃ 0 to 15℃ to 50℃ | ||||
| 工作温度(环境温度): Operating temperature (ambient temperature) |
0-15℃至+50℃ 最大90%Rh 0 to 15℃ to 50℃ Max 90%rh | ||||
| 储存温度(无凝水): Storage temperature |
0-15℃至+50℃ 0 to 15℃ to 50℃ | ||||
| 滤器要求: Fliter requirements |
40μ | ||||
| 润滑要求: Lubrication requirement: |
无 | ||||
| 连续操作频率: continuous operation frequency: |
350HZ | 压力2-8bar,打开时间1.0-1.9ms Pressure range 2-8bar,operating time 1.0-1.9ms |
|||
| 最大连续操作频率: Maximum continuous operation frequency: |
500HZ | 压力2bar,打开时间1.1ms | |||
| 最大占空比: Maximum duty cycle: |
55% | 在最大连续操作频率是 At maximum continuous operating frequency |
|||
| 使用寿命: Service life |
5亿次循环 500 million cycles | 2bar压缩空气.打开时间1.1ms compressed air,peak time 1.1ms |
|||
| 最大泄露率: Maximum leakage rate: |
3sccm | ||||
| 防护等级: Level of protection |
IP62 | ||||
| 压力范围: pressure range: |
2-8bar | ||||
| 空气压力: Air pressure |
2bar | 4bar | 6bar | 8bar | |
| 静态流量: Static traffic |
65NLM±10% | 115NLM±10% | 170NLM±10% | 215NLM±10% | |
| 响应时间: Response time; |
24vdc 压缩空气 24 compressed air |
||||
| 压力: Stress |
2bar | 4bar | 6bar | 8bar | |
| 打开响应时间: Turn on response time: |
0.8ms | 1.0ms | 1.2ms | 1.4ms | 单次循环,响应时间用压力传感器测量 The response time is measured by a pressure sensor in a single cycle |
| 关闭响应时间: Turn off response time: |
单次循环,响应时间用压力传感器测量 The response time is measured by a pressure sensor in a single cycle |
||||
| 压力响应时间0-最大值: Pressure response time 0-max: |
<1ms | ||||
| 压力响应时间最大值-0: Pressure response time max-0: |
<1ms | ||||
| 线圈电阻: Coil resistance |
28Ω | ||||
| 线圈电感:(平均值) Coilinductance(avarage) |
17mh | 环境温度20℃时 when the ambient temperature is 20℃ |
|||
| 21mh | 打开 Open it | ||||
| Speed-up 电压范围: Speed-up voltage range: |
24vdc±10% | 关闭 Shut down | |||
| Speed-up 电流:(24vdc) Speed-up current:(24vdc) |
0.9A | ||||
| Holding 电压: Holding voltage : |
5vdc | ||||
| Holding 电流:(24vdc) Holding current:(24vdc) |
0.18A | ||||
| Holding 功耗: Holding power consumption: |
0.9W | ||||
Product Features
1.Valve no leak,hit rate is high.
2.save electronicity,gas consumption is low.
3.long service life(more than 6 billion times).
4.short closing time (04-035ms)fast reaction speed(1200HZ).
5.Working pressure in(02-08MPA) range of mormal work.
6.Valve coil temperature can reach 150 degrees above safe work.
We are producing different kind of ejector valve for color sorters more than 20 years in China.Welcome your inquiry.
