Product Details:
|
| Power: | 220V/50HZ | Condition: | New |
|---|---|---|---|
| Color: | Green | Sorting Accuracy(%): | ≥99.99 |

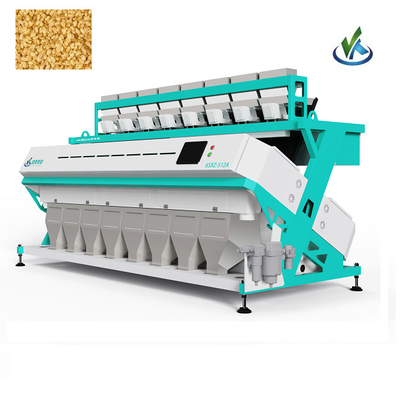

| Power(w): | 4.0KW | Name: | Peanut Color Sorter |
| Function: | Sorting,Multifunction,separator Differeent Color Grains | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Overseas Service Center Available,Field Maintenance And Repair Service |
| High Light: | RGB Rice Color Sorter,Multi Function Rice Color Sorter,Green Rice Colour Sorter |
||
Technical Parameters
| Model NO. |
6SXZ-512A |
| Accuracy (Percent) |
99.99 |
| Optical Carryover (Bad:Good) |
30:1 |
| Capacity (T/H) |
6.0-12.0 |
| Power (kwh) |
5.0 |
| Air Pressure (Mpa) |
0.6-0.8 |
| Air Consumption (L/M) |
≤3.6 |
| Dimension(mm) (L*W*H) |
3486*1560*1800 |
| Weight (kg) |
1750 |
Color Sorter Working Principle
Color Sorter working principle is to use the photoelectric detection technology and image acquisition system to obtain the (RGB) red, green and blue optical information of the material, convert the optical characteristics of the material into a photoelectric signal, and then send the signal to the control system to drive the ejector uses compressed air to blow out foreign particles in the material.
Why Choose Jietai Color Sorter
Factory direct,quality assurance!!!
⓵Running Stable
Quality assurance,
long service life.
Non-invasive sorting for all-round protection of easy to damage and break materials.
⓶Minimalist User Interface
Let you far away from debugging difficult and operation complex trouble.
⓷Super Brain recognition
Intelligent sorting,accurate identification of extremely small color difference and extremely small heterochromatic area materials.
⓸Intelligent Valve
Intelligent control of blowing frequency,It can be achieved optimized carryover and ultra-low air consumption.
Intelligent detection of valve running status which makes the failure and operation life of the valve under control.
⓹Powerful Function
Shape sorting and color sorting,intelligent color sorting plans for flexible matching.
⓺After-sale Without Worry
provide free training,consulting and technical support for users;
Provide free warranty service for one year(except the wearing spare parts)
JIETAI Color Sorter Core Parts
1. Touch Screen Interface:Independent-research operate interface.
2. Camera:Nikon camera,super high resolution,Ultra-Sensitive ,wide vision, low distortion.
3. Chip:Multi-core parallel image processing system, flexible matching and synchronous operation of color sorting/shape sorting.
4. Filter:SMC from Japan.
5. Touch Screen System:Windows CE system.
6. Sensor:Toshiba from Japan,Full-color high-speed CCD sensor recognizes 0.04mm²accurately.
7. Ejectors:Italy core technology, new special high wear-resistant material.
7. LED:Taiwan Yiguang,shadow-less LED colorful light source, multi-angle shadow-less light path technology.
Our Office&Workshop&Warehouse
Our company offers variety of products which can meet your multifarious demands.We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
Packaging&Shipping
1.Our products use professionalwooden cases with PE plastic bag..Package size will depend on each model size.
2.The delivery time is about 15-20 days after receciving the deposit.
Our Service
Before sales services
We will help you know ahout our color sorter,meets your special requirementaccording to actual condition.
After sales services
1. Provide free training,consulting and technical support for users;
2. Provide personalized programs to the demands of customers;
3. Upgrade software for free for a life time;
4. Provide free warranty service for one year(except the wearing spare parts);
5. Provide 7*24 hours consultation and urgent servicce for users.
Cooperation Case
The success introduction of the JT Color Sorter into the market meets the demand of the international
market.Our machine can be found everywhere in Thailand,China,India,Algeria,Bangladesh,Myanmar
and others more countries.
Plaese feel free to inquire if you are interested in our procducts!
