Product Details:
|
| Application: | Rice Sorting | Capacity(T/H): | 0.3-0.5 |
|---|---|---|---|
| Power: | 220V/50HZ | Condition: | New |
| Sorting Accuracy(%): | ≥99.99 | Dimension(l*w*h): | 665*1190*1440mm |
| Function: | Color Sorter,sorting Different Color Materials | Feature: | Easy Operation,Intelligent |
| High Light: | Easy Operation Seeds Sorting Machine,Seeds Color Sorting Machine,Intelligent Seeds Sorting Machine |
||

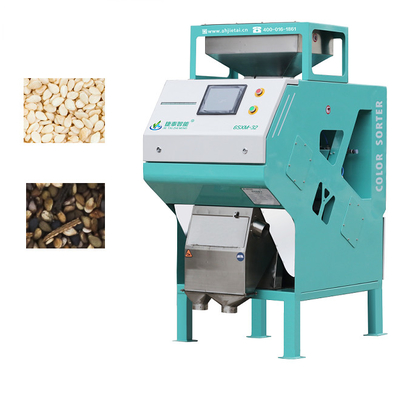

Easy Operation Seeds Color Sorting Machine For Seasame Color Sorting
Technical Parameters
|
Model NO. |
6SXM-32 |
|
Accuracy (Percent) |
99.99 |
|
Optical Carryover (Bad:Good) |
30:1 |
|
Capacity (T/H) |
0.3-0.5 |
|
Power (kwh) |
0.8 |
|
Air Pressure (Mpa) |
0.6-0.8 |
|
Air Consumption (L/M) |
≤0.4 |
|
Dimension(mm) (L*W*H) |
665*1190*1440 |
|
Weight (kg) |
160 |
Advantage of Jietai Color Sorter
1.No need to debug, you can use after power-on,without any special experience.
2. Easy to operate,one-click to choose the sorting modes, such as normal rice,japonica rice,glutinous rice,black rice and red rice.
3.The quality is controllable, you can adjust the sorting accuracy freely to meet the needs of differentiated processing and the sorting performance is up to 99.99%.
4.It can do second sorting,low consumption and carryover ratio is more than 30:1,the income is guaranteed.
5.The output is flexible, and it can process 3.0-6.0 tons per hour, which can meet the needs of various processing easily.
6.Intelligent ejectors and ultra-low air consumption to achieve low carryover ratio.
7.Intelligent self-inspection,dust removal and anti-breakage, automatic dust cleaning and automatic adjustment of signals and lights to maintain the best color sorting state.
8.Worry-free after-sale service, and quality guaranteed.
JIETAI Color Sorter Core Parts
a.Touch Screen Interface:Independent-research operate interface.
b.Camera:Nikon camera,super high resolution,Ultra-Sensitive ,wide vision, low distortion.
c.Chip:Multi-core parallel image processing system, flexible matching and synchronous operation of color sorting/shape sorting.
d. Filter:SMC from Japan.
e.Touch Screen System:Windows CE system.
f. Sensor:Toshiba from Japan,Full-color high-speed CCD sensor recognizes 0.04mm²accurately.
g. Ejectors:Italy core technology, new special high wear-resistant material.
h. LED:Taiwan Yiguang,shadow-less LED colorful light source, multi-angle shadow-less light path technology.
Packaging&Shipping
Our products use professional wooden cases with PE plastic bag..Package size will depend on each model size.
