Product Details:
|
| Application: | Grain Sorting | Capacity(T/H): | 1.6-3.0 |
|---|---|---|---|
| Power: | 220V/50HZ | Color: | Blue-White |
| Condition: | New | Sorting Accuracy(%): | ≥99.99 |
| Dimension(l*w*h): | 1320*1520*1885mm | Function: | Color Sorter,sorting Different Color Materials |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Online Support,Field Installation,commissioning And Training | Certification: | ISO9001,CE |
| High Light: | Touchscreen Grain Color Sorter Machine,LED Grain Color Sorter Machine,Touchscreen soybean sorter |
||
Working Principle of Color Sorters
1. The material enters the machine from the collecting hopper on the top, and the selected material falls along the feeding distribution trough through the vibration of the feeding device (vibrator).
2. The material passes through the vibrator at the upper end of the chute and accelerates down the chute into the sorting box
3. After entering the sorting box, it passes between the image processing sensor CCD and the background device. Under the action of the light source, the CCD receives the synthetic light signal from the selected material, so that the system generates an output signal, which is amplified and transmitted to the FPGA +ARM arithmetic processing system, and then the control system sends instructions to drive the injection solenoid valve to move, blowing the heterochromatic particles into the waste cavity of the discharge hopper to flow away.
4. The good selected materials continue to fall into the finished product cavity of the receiving hopper and flow out, so that the selected materials can achieve the purpose of selection.
Technical Parameter
|

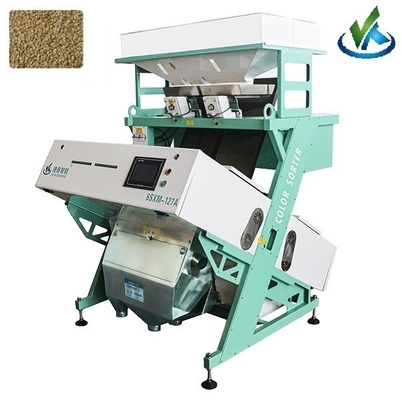

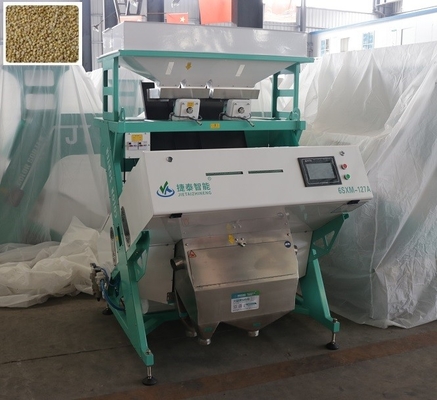

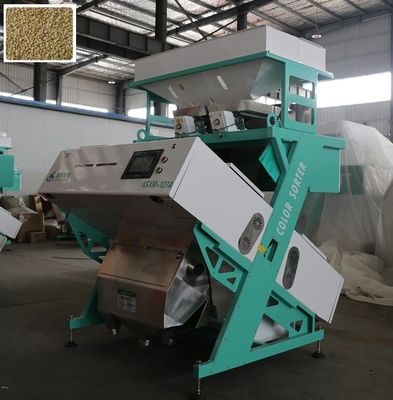

Model |
6SXM-127A |
|
Accuracy |
99.99 |
|
Optical Carryover |
30:1 |
|
Capacity |
1.6-3.0 |
|
Power |
2.0 |
|
Air Pressure |
0.6-0.8 |
|
Air Consumption |
≤1.0 |
|
Dimension(mm) |
1320*1520*1885 |
|
Weight |
430 |
Application Fields
Our machine can sort many kinds of rice and grains and other materals
• Rice:white rice;black rice;parbil rice; thai rice ;brown rice etc.
• Grains:peanut, corn,sesame,oat,millet,little lentil.
• Beans:red beens,kidney beans,coffee bean,black beans,mung beans.
• Nuts:walnut kernel,apricot kernel,sunflower seeds,almond,watermelon seed,macadamia nut.
• Seeds:watermelon seeds;sunflower seeds.
• Industries:plastic,electronic component,industrial salt,quartz sand
• Others:tea,raisins,wolfberry,pepper.
JIETAI Color Sorter Core Parts
1. Touch Screen Interface:Independent-research operate interface.
2. Camera:Nikon camera,super high resolution,Ultra-Sensitive ,wide vision, low distortion.
3. Chip:Multi-core parallel image processing system, flexible matching and synchronous operation of color sorting/shape sorting.
4. Filter:SMC from Japan.
5. Touch Screen System:Windows CE system.
6. Sensor:Toshiba from Japan,Full-color high-speed CCD sensor recognizes 0.04mm²accurately.
7. Ejectors:Italy core technology, new special high wear-resistant material.
8. LED:Taiwan Yiguang,shadow-less LED colorful light source, multi-angle shadow-less light path technology.
JIETAI Color Sorter Core Parts
Touch Screen Interface:Independent-research operate interface.
Camera:Nikon camera,super high resolution,Ultra-Sensitive ,wide vision, low distortion.
Chip:Multi-core parallel image processing system,
flexible matching and synchronous operation of color sorting/shape sorting.
Filter:SMC from Japan.
Touch Screen System:Windows CE system.
Sensor:Toshiba from Japan,Full-color high-speed CCD sensor recognizes 0.04mm²accurately.
Ejectors:Italy core technology, new special high wear-resistant material.
LED:Taiwan Yiguang,shadow-less LED colorful light source,
Packaging&Shipping
Our products use professional wooden cases with PE plastic bag..Package size will depend on each model size.
Our Service
Before sales services
We will help you know about our color sorter,meets your special requirement according to actual condition.If you want to have your own logo printed on the macine or want to customize your own color for the machine, tell us,we can help you.
After sales services
1. Provide free training,consulting and technical support for users;
2. Provide personalized programs to the demands of customers;
3. Upgrade software for free for a life time;
4. Provide free warranty service for one year(except the wearing spare parts);
5. Provide 7*24 hours consultation and urgent servicce for users.
Contact Us
FAQ
1.Q:How about the guarantee period?
A:The color sorter(excluding the wearing parts) is warranted for one year for free from date of purchase.we provide a lifetime maintenance service.
2.Q:Will you accept L/C as payment?
A:L/C ,T/T is OK.
3.Q:How about engineers service oversea?
A:Engineers available to service machinery overseas.
4.Q:How to use the machine?
A:We will supply customer the installation catalog or video online.We will ask our engineer to teach you and Our engineers will also train your person when they go to your place for debugging.
5.Q:How about the sample machines for testing?
A:Sample sending for testing is welcomed.Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to discard).We send our sorting video to you.
6.Can you supply the accessories parts of color sorter?
A:Yes,we can supply some spare parts when you need.
