Product Details:
|
| Application: | Grain Sorting | Capacity(T/H): | 1.6-3.0 |
|---|---|---|---|
| Power: | 220V/50HZ | Color: | Blue-White |
| Condition: | New | Sorting Accuracy(%): | ≥99.99 |
| Dimension(l*w*h): | 1320*1520*1885mm | Function: | Color Sorter,sorting Different Color Materials |
| High Light: | 220V 50HZ Rice Color Sorter Machine,Vibrated CCD Rice Color Sorter Machine,Vibrated ccd color sorter |
||

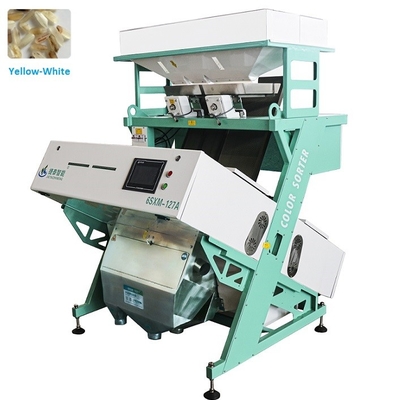

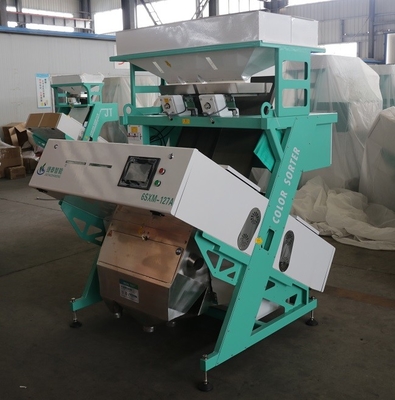

Jietai rice color sorter,as an intelligent machine, can detect and remove mildewy rice, white rice,broken rice, glass and stone in the raw material and classify rice based on the color,shape and other differences,Jietai rice color sorter always provides customers with intelligent,professional and comprehensive sorting solutions,such as sorting extremely light yellowrice, backline rice, needle tip, diseased rice and small broken rice.
Color Sorter Working Principle
Raw Material are put into the machine from its feeding hopper on the top,vibrated by vibration device and sliding along material chute into the zone of observationin sorting chamberthrough sensor andbackground plate.Under the effect of light source,CCD sensor receives compound light from materials being sorted.According to the light intensity and color changes,make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
Technical Parameters
|
Model NO. |
6SXM-127A |
|
Accuracy (Percent) |
99.99 |
|
Optical Carryover (Bad:Good) |
30:1 |
|
Capacity (T/H) |
1.6-3.0 |
|
Power (kwh) |
2.0 |
|
Air Pressure (Mpa) |
0.6-0.8 |
|
Air Consumption (L/M) |
≤1.0 |
|
Dimension(mm) (L*W*H) |
1320*1520*1885 |
|
Weight (kg) |
430 |
Jietai Color Sorter Features
Easy to operate,Low maintenance cost.
High performance-price ratio.
Simple structure,small footprint.
Large output and low power.
High accuracy of color separation
Why Choose Jietai Color Sorter
Factory direct,quality assurance!!!
JIETAI Color Sorter Core Parts
1.Touch Screen Interface:Independent-research operate interface.
2.Camera:Nikon camera,super high resolution,Ultra-Sensitive ,wide vision, low distortion.
3.Chip:Multi-core parallel image processing system, flexible matching and synchronous operation of color sorting/shape sorting.
4.Filter:SMC from Japan.
5.Touch Screen System:Windows CE system.
6.Sensor:Toshiba from Japan,Full-color high-speed CCD sensor recognizes 0.04mm²accurately.
7.Ejectors:Italy core technology, new special high wear-resistant material.
8.LED:Taiwan Yiguang,shadow-less LED colorful light source, multi-angle shadow-less light path technology.
Cooperation Case
Our machine can be found everywhere in China,Thailand,India,Bangladesh,Philippines and others more countries.
Packaging&Shipping
Our products use professionalwooden cases with PE plastic bag..Package size will depend on each model size.
Our Service
Before sales services
We will help you know about our color sorter,meets your special requirement according to actual condition.If you want to have your own logo printed on the macine or want to customize your own color for the machine, tell us,we can help you.
After sales services
1. Provide free training,consulting and technical support for users;
2. Provide personalized programs to the demands of customers;
3. Upgrade software for free for a life time;
4. Provide free warranty service for one year(except the wearing spare parts);
5. Provide 7*24 hours consultation and urgent servicce for users.
FAQ
1.Q:How about the guarantee period?
A:The color sorter(excluding the wearing parts) is warranted for one year for free from date of purchase.we provide a lifetime maintenance service.
2.Q:Will you accept L/C as payment?
A:L/C ,T/T is OK.
3.Q:How about engineers service oversea?
A:Engineers available to service machinery overseas.
4.Q:How to use the machine?
A:We will supply customer the installation catalog or video online.We will ask our engineer to teach you and Our engineers will also train your person when they go to your place for debugging.
5.Q:How about the sample machines for testing?
A:Sample sending for testing is welcomed.Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to discard).We send our sorting video to you.
6.Can you supply the accessories parts of color sorter?
A:Yes,we can supply some spare parts when you need.
