Product Details:
|
| Application: | Grain Sorting | Capacity(T/H): | 0.8-1.6 |
|---|---|---|---|
| Power: | 220V/50HZ | Color: | Blue-White |
| Condition: | New | Sorting Accuracy(%): | ≥99.99 |
| Dimension(l*w*h): | 785*1397*1497mm | Function: | Color Sorter,sorting Different Color Materials |
| High Light: | RGB Plastic Color Sorter Machine,220V Plastic Color Sorter Machine,RGB plastic sorting machine |
||

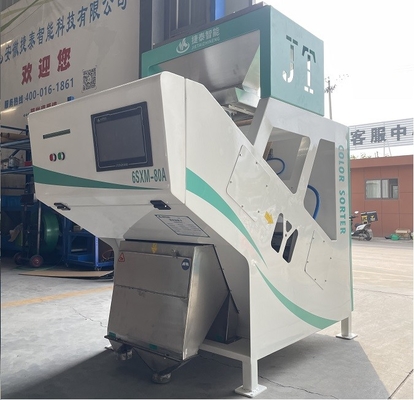

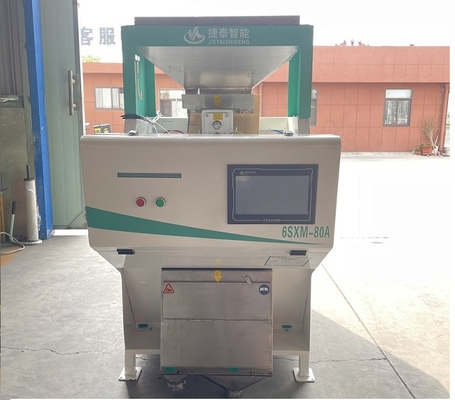

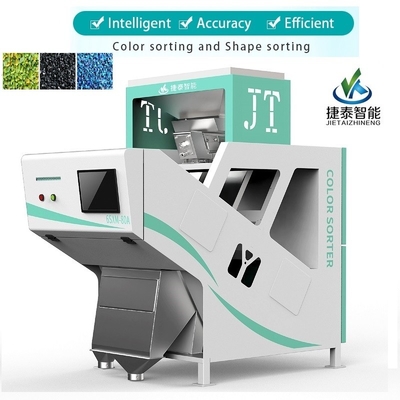

JIETAI Plastic Color Sorter is a smart,automated color sorting machine that helps you sort plastic flakes,plastic granules,plastic chipes,plastic tubes and remove any defects and foreign materials with a high precision.
Color Sorter Working Principle
Color Sorter working principle is to use the photoelectric detection technology and image acquisition system to obtain the (RGB) red, green and blue optical information of the material, convert the optical characteristics of the material into a photoelectric signal, and then send the signal to the control system to drive the ejector uses compressed air to blow out foreign particles in the material.
Technical Parameters
|
Model NO. |
6SXM-80A |
|
Accuracy (Percent) |
99.99 |
|
Optical Carryover (Bad:Good) |
30:1 |
|
Capacity (T/H) |
0.8-1.6 |
|
Power (kwh) |
1.5 |
|
Air Pressure (Mpa) |
0.6-0.8 |
|
Air Consumption (L/M) |
≤0.6 |
|
Dimension(mm) (L*W*H) |
758*1397*1497 |
|
Weight (kg) |
260 |
Product Features
1.Easy to operate,Low maintenance cost.
2.High performance-price ratio.
3.Simple structure,small footprint.
4.Large output and low power.
5.High accuracy of color separation
Plastic Processing
Sorting Performance
Cooperation Case
Our machine can be found everywhere in China,Thailand,India,Bangladesh,Philippines and others more countries.
Packaging&Shipping
Our products use professionalwooden cases with PE plastic bag..Package size will depend on each model size.
Our Service
Before sales services
We will help you know about our color sorter,meets your special requirement according to actual condition.If you want to have your own logo printed on the macine or want to customize your own color for the machine, tell us,we can help you.
After sales services
1. Provide free training,consulting and technical support for users;
2. Provide personalized programs to the demands of customers;
3. Upgrade software for free for a life time;
4. Provide free warranty service for one year(except the wearing spare parts);
5. Provide 7*24 hours consultation and urgent servicce for users.
