Product Details:
|
| Power: | 220V/50HZ | Type: | Rice Sorting Machine |
|---|---|---|---|
| Condition: | New | Production Capacity: | 4-6T/H |
| Color: | Blue | Sorting Accuracy(%): | ≥99.99 |
| Power(w): | 3.5KW | ||
| High Light: | Optical sesame color sorter,6 Chutes sesame color sorter,6 Chutes optical sorting machine |
||

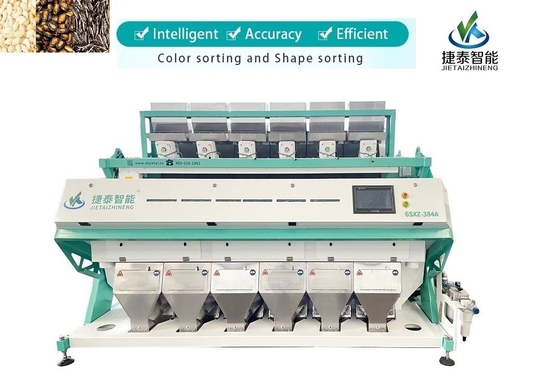

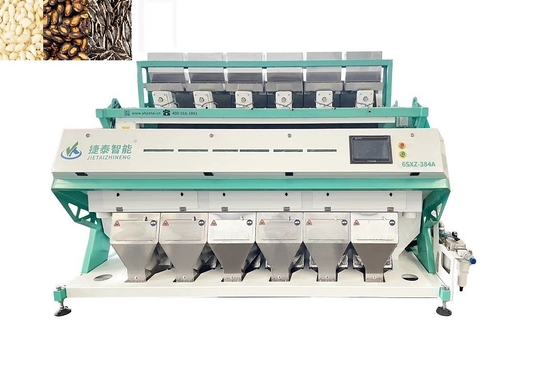

JIETAI Seeds Color Sorter Machine, designed for kinds of Seeds,sunflower seeds ,pumpkin seeds and other types of seeds.RGB CCD Optical Rice Sorting Machine,1 Chute, 2 Chutes,3 Chutes,4 Chutes,5 Chutes, 6 Chutes,7 Chutes,8 Chutes,10 Chutes,12 Chutes are available.You can get best quality seeds color sorter machine and other materials color sorter machine here.
Technical Parameters
| MODEL | 6SXZ-448A |
| Chutes/Channels | 6/384 |
| Throughput(T/H) | 4-8 |
| Accuracy(Percent) | ≥99.99% |
| Power(Kwh) | 3.5 |
| Power Voltage | 220V/50Hz |
| Air compressure(Mpa) | <2.2 |
| Weight(Kg) | 1350 |
| Dimension(L*W*H) | 2800*1560*1800mm |
Working Principle of Color Sorters
Raw Material are put into the machine from its feeding hopper on the top,vibrated by vibration device and sliding along material chute into the zone of observationin sorting chamberthrough sensor andbackground plate.Under the effect of light source,CCD sensor receives compound light from materials being sorted.According to the light intensity and color changes,make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
Application Fields
We has a solution for seeds color sorter,seeds optical sorting.Seeds color sorter is equipped with the digital processing system to deliver a consistent and reliable sorting performance.
Packaging Details and Shipping
Our products use professional wooden cases with PE plastic bag,package size will depend on each model size.
Our Service
Our Service Team
Before sales services
We will help you know ahout our color sorter,meets your special requirementaccording to actual condition.
After sales services
① Provide free training,consulting and technical support for users;
② Provide personalized programs to the demands of customers;
③ Upgrade software for free for a life time;
④ Provide free warranty service for one year(except the wearing spare parts);
⑤ Provide 7*24 hours consultation and urgent servicce for users.
